Edit Canvas
The Canvas is the core service of CloudStudio
that allows you to drag & drop resources to design cloud infrastructure, manage versions, and deploy them.
✂️ Feel free to edit the Canvas as you like!
How to Use the Diagram Options Toolbox
The Diagram Options Toolbox, located at the top, offers various features to help you customize and enhance your canvas.
| 이미지 | 동작 | 기능 |
|---|---|---|
 | Undo | Reverts to the previous step. |
 | Redo | Moves forward one step. |
 | Resource List | Toggles the resource icon list on and off. |
 | Show Resource Names | Displays the resource icon list with names. |
 | Send to Back | Sends the selected resource behind others when overlapping. |
 | Bring to Front | Brings the selected resource in front of others when overlapping. |
 | Change Text Color | Allows you to change text color options. |
 | Change Canvas Background Color | Allows you to change the canvas background color. |
 | Change Canvas Theme | Allows you to change the theme to match the selected CSP on the canvas. |
 | Grid | Toggles the canvas grid on and off. |
 | Screen Ratio | Adjusts the canvas screen ratio. |
 | Fullscreen | Switches to fullscreen mode. |
 | Switch Canvas Mode | Switches between Studio (features enabled) and Diagram (features disabled) modes. |
How to Use the Canvas Options Toolbox
The Canvas Options Toolbox, located in the side menu, provides access to various features of CloudStudio.
| 이미지 | 동작 | 기능 |
|---|---|---|
 | Save | Saves the current canvas configuration. |
 | Export | Downloads an image and Terraform code of the architecture as a compressed file. |
 | Import | Imports resources deployed in the actual cloud environment into the canvas. |
 | Save Version | Saves the current canvas configuration as a version. |
 | Version Commit | Allows you to view and load previously recorded version commits. |
 | Cost Calculation | Estimates and calculates the cost of the resources configured in the current canvas. |
 | Security Inspection | Inspection vulnerabilities in the Terraform code generated by the canvas. |
 | Validation | Performs validation of the Terraform code generated by the canvas. |
 | Deploy | Deploys the resources configured on the canvas to the cloud environment. |
 | Migration | Converts the infrastructure configured on the canvas to an infrastructure for another cloud provider. |
 | Check Resource Options | Allows you to review the options for the resources configured in the canvas. |
 | View Terraform Code | Displays the Terraform code generated by the canvas configuration. |
 | View Canvas Configuration | Shows the canvas configuration in a tree format. |
 | Check Resource Option Errors | Allows you to view errors related to the options of the configured resources. |
Resource Drag & Drop
Drag & Drop is the most basic way to configure the canvas.
You can select a desired resource from the left Resource List and place it in the canvas area.
If resources cannot be connected to each other, the connection will be restricted with a red indicator.
The Resource List is a panel on the left side of the canvas that gathers all available resources.

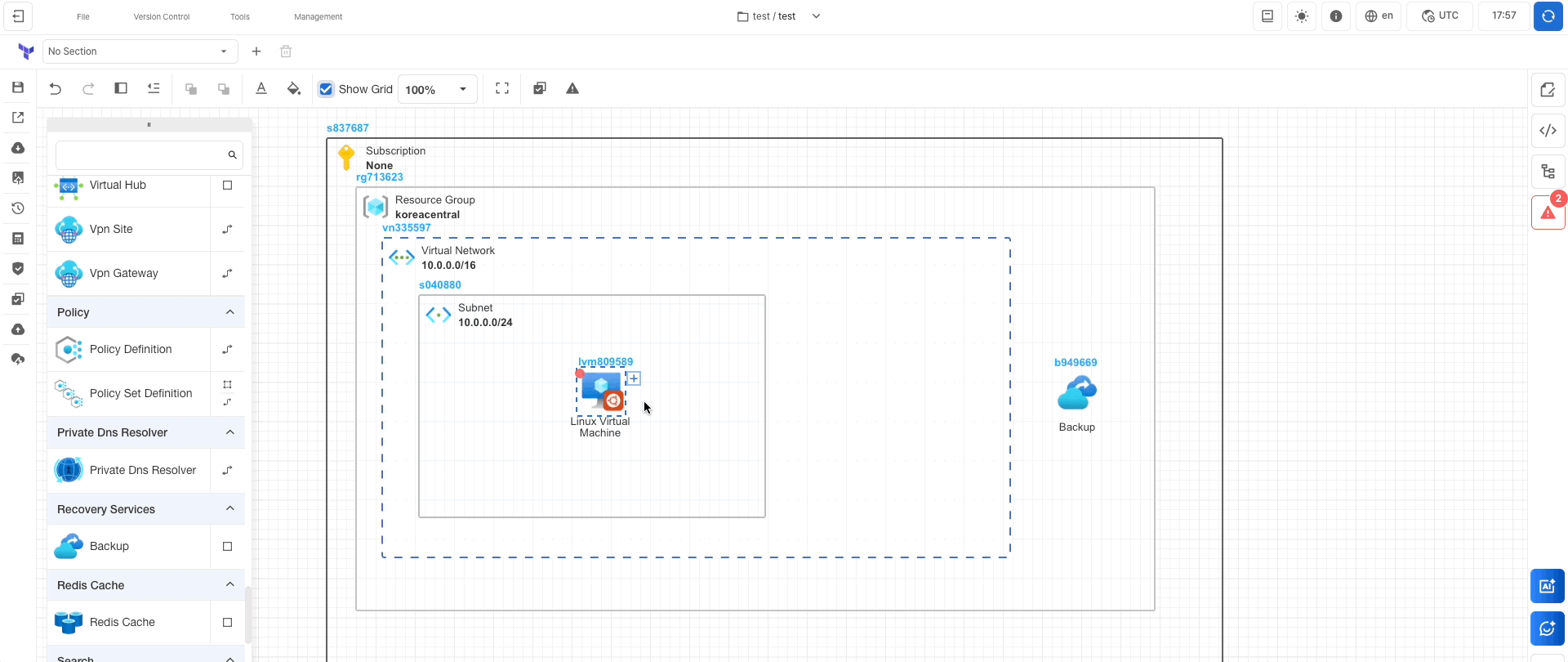

Connecting Resources
Among the resources placed on the canvas, those that can be connected to each other can be linked with lines.
These connections are used to configure specific options between resources or to define their relationships.
Resource Types
Resources are broadly categorized into the following four types. Refer to the resource list below to connect resources on the canvas.
| Image | Name | Description |
|---|---|---|
 | Basic | Shows the resources that can belong to a group. |
 | Connect | Shows a list of resources that can be connected to this resource. |
 | Group | Shows a list of resources that can belong to this group. |
 | Tools | Shows a list of canvas tools. |

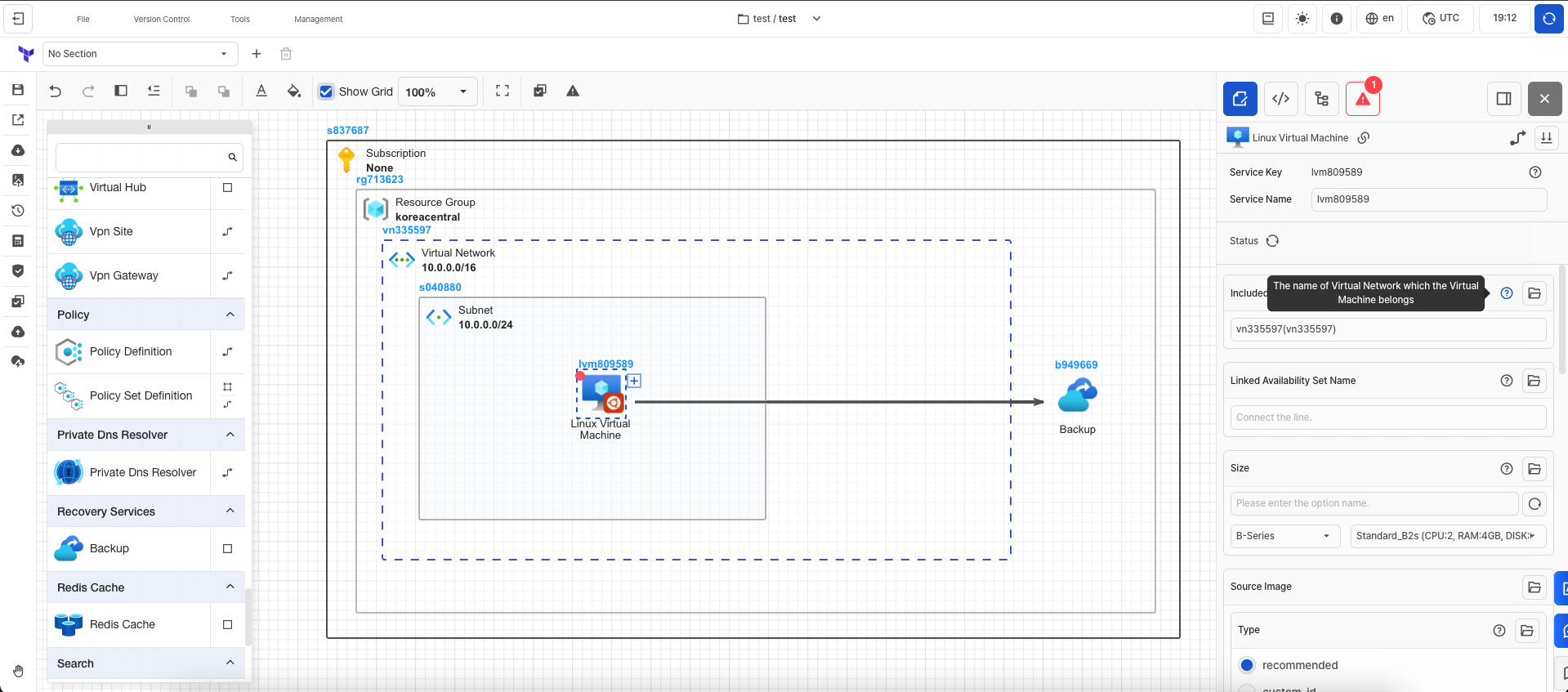

Editing Resource Options
Double-clicking a resource allows you to open the Edit window where you can modify the resource settings.
By clicking the Show Details icon, you can check the description of the selected resource.
Hovering over the Question mark icon next to each option displays a description of that option.
You can configure the required values by referring to the provided descriptions.

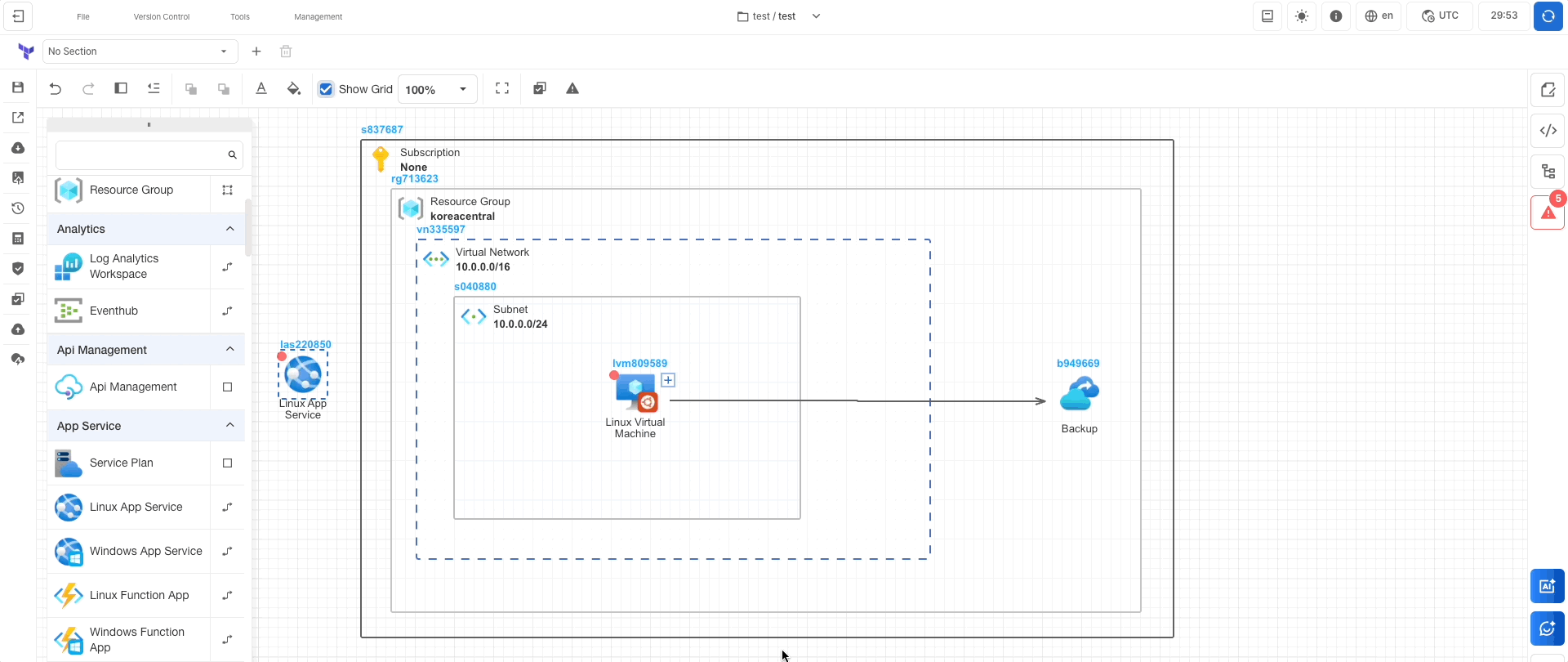

Fixing Errors
🔴 Red dots indicate that an error exists in the corresponding resource. If an error is present, the canvas cannot be saved or deployed. To resolve the error, double-click the resource with an error on the canvas to open the canvas error window. In the canvas error window, double-click a specific error to move to the location where the error occurred, and refer to the displayed error details to fix the issue.
Types of Errors
| type | description |
|---|---|
| value | Errors caused by incorrect input values |
| group | Errors when a resource does not belong to any group |
| line | Errors when required resources are not connected |
